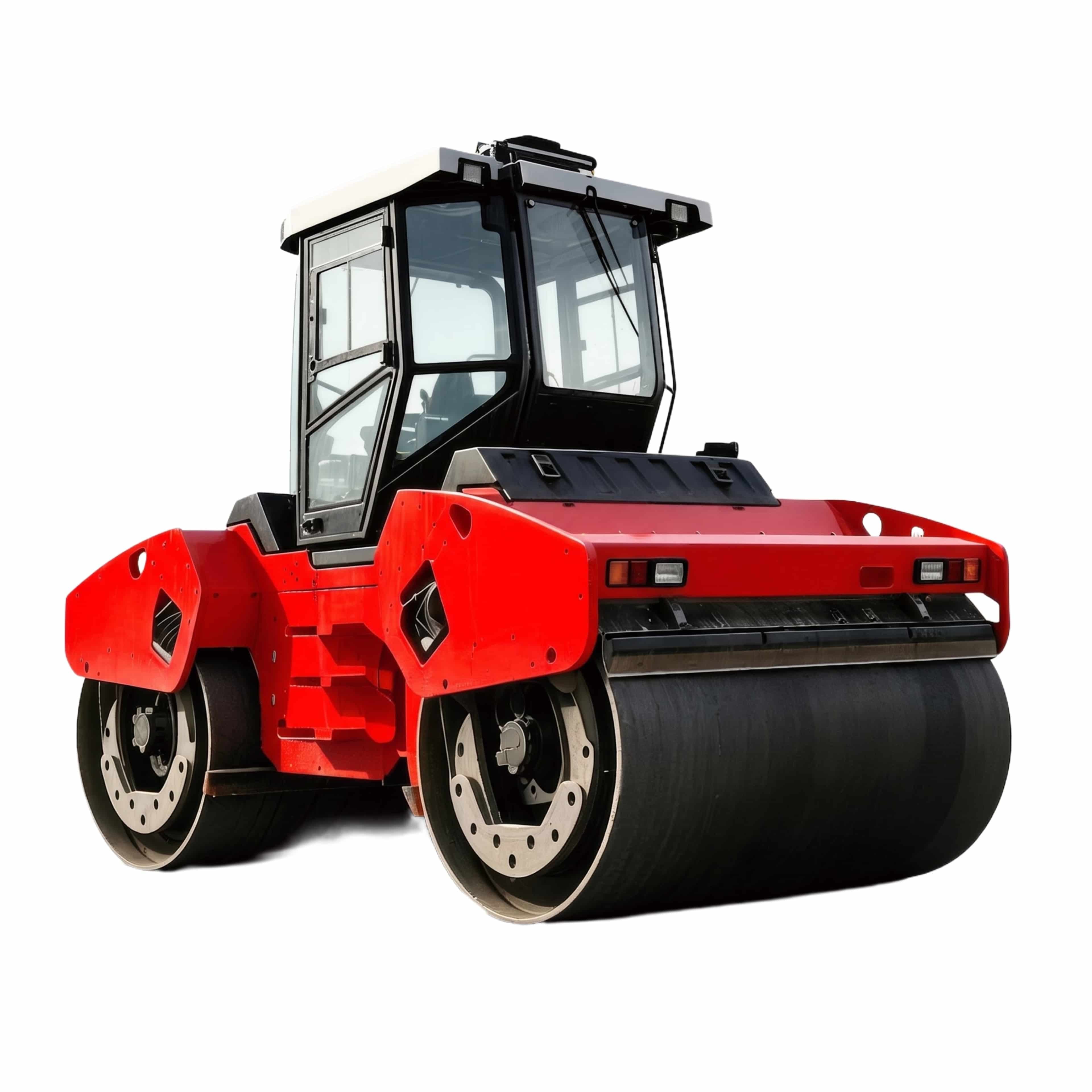

HD 0120V Double Drum Vibratory Roller

The HD 0120V is a 12-ton class double drum roller featuring a vibrating front drum and an oscillating rear drum, designed for asphalt surface and base layer compaction on high-grade highways.

Roller
Double Drum Roller

Technical Specifications

Parameter Unit Specification
Operating Weight (with ROPS) kg 12,250
Maximum Operating Weight kg 13,950
Axle Load (Front/Rear) kg 6,180 / 6,070
Static Linear Pressure (Front/Rear) kg/cm 31.2 / 30.7
Engine - Deutz BF 4M 2012 C
Rated Power kW (PS) 98 (133) @ 2300 rpm
Drum Width mm 1,980
Drum Diameter mm 1,400
Max Working Width mm 2,080
Inside Turning Radius mm 5,285
Vibration Frequency (Front) Hz 42 / 50
Amplitude (Front) mm 0.87 / 0.46
Centrifugal Force (Front) kN 186 / 139
Oscillation Frequency (Rear) Hz 36 / 42
Oscillation Force (Rear) kN 205 / 279
Working Speed km/h 0–6.2
Travel Speed km/h 0–12.0
Gradeability (with/without vibration) % 30 / 35
Water Tank Capacity L 900
Dimensions (L×W×H) mm 5,000 × 2,090 × 3,200

Applications

Asphalt surface compaction for high-grade highways; compaction of sensitive areas such as bridge decks and modified asphalt; large-area paving for parking lots, industrial parks, and municipal roads.
