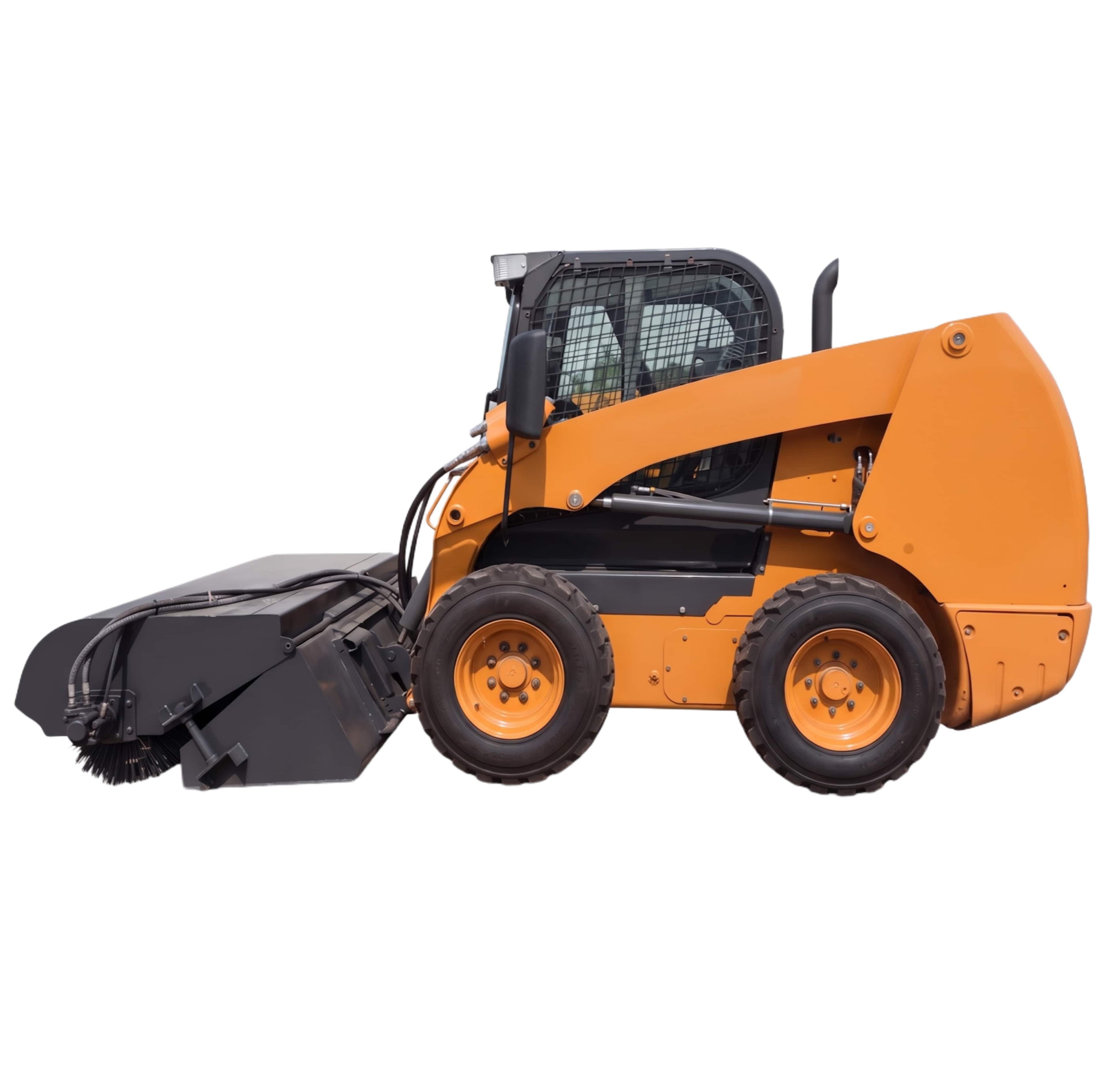

70XT Skid Steer Loader

The 70XT is a medium-sized skid steer loader with a compact and maneuverable design, suitable for loading, digging, breaking, sweeping, and other operations in confined spaces and complex working conditions.

Skid Steer Loader​

Technical Specifications

Parameter Unit Specification
Engine Model - Case 4T-390 4-cylinder turbocharged diesel
Rated Power kW (hp) 59 (79) @ 2200 rpm
Displacement L 3.9
Max Torque N·m 262
Operating Weight kg 3,130 – 3,500
Rated Operating Capacity kg 910
Tipping Load kg 1,815
Bucket Capacity m³ 0.46 (0.6 yd³)
Max Dump Height mm 2,438 (8.0 ft)
Breakout Force kg 2,115 (4,664 lbs)
Travel Speed km/h 11.4 (7.1 mph)
Hydraulic Flow L/min 79.5 (21 gpm)
Fuel Tank Capacity L 83.3 (22.0 gal)
Hydraulic System Capacity L 50.3 (13.3 gal)
Standard Tyres - 12.00 × 16.5
Transport Length (with bucket) mm 3,230
Transport Width (over tyres) mm 1,630 – 1,800
Transport Height (cab top) mm 1,128 (3.7 ft)
Ground Clearance mm 231 (9.1 in)
Wheelbase mm 5,000 × 2,090 × 3,200

Applications

Earthmoving, backfilling, and leveling in construction and municipal engineering; milling material cleanup and pavement breaking in road maintenance; soil handling and tree pit excavation in landscaping; material transfer and sweeping in warehouses and industrial plants.
