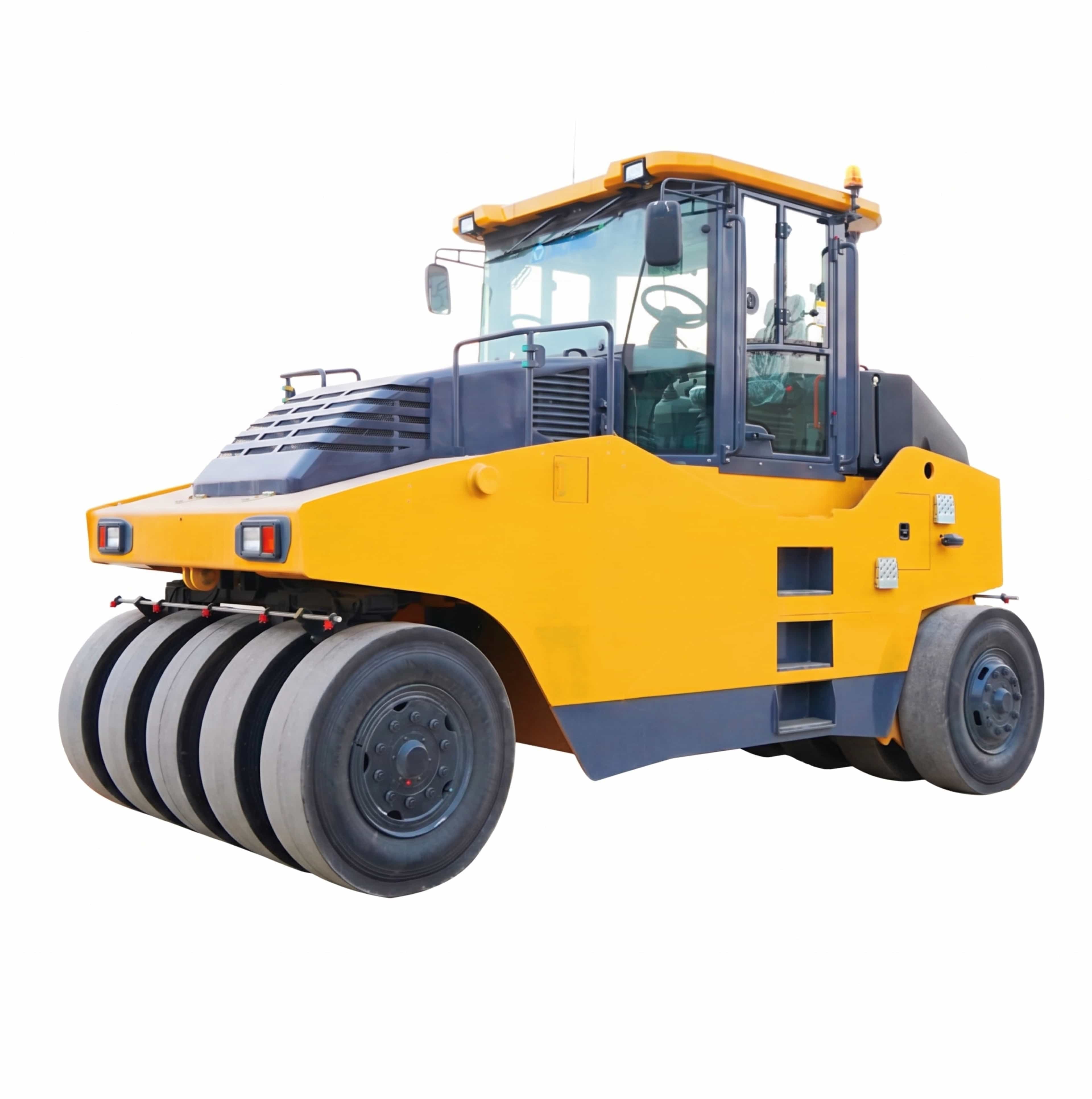

XP303K Pneumatic Tire Roller

The XP303K is a 30-ton class large-tonnage pneumatic tire roller, suitable for compacting asphalt pavement, cement-stabilized soil, foundation layers and filling engineering. It is an ideal compaction equipment for high-grade highways, airports, ports and industrial construction sites.

Roller
Pneumatic Tire Roller

Technical Specifications

Parameter Unit Specification
Max Operating Weight kg 30,300
Min Operating Weight kg 15,000
Counterweight Mass kg 14,550
Counterweight Water Mass kg 650
Engine Model - Shangchai SC7H180.2G3
Rated Power kW (hp) 132 (177) @ 1800 rpm
Compacting Width mm 2,750
Tire Number (Front/Rear) - 5 front, 6 rear
Tire Specification - 11.00-20-16PR
Tire Overlap     mm 45
Ground Pressure kPa 200 – 460
Travel Speed km/h 0 – 17
Theoretical Gradeability % 20
Min Turning Radius (Outer) mm 7,820
Min Ground Clearance mm 300
Wheelbase mm 3,840
Fuel Tank Capacity L 170
Water Tank Capacity L 650
Dimensions (L×W×H) mm 4,925 × 2,851 × 3,400

Applications

Asphalt surface and cement-stabilized soil compaction for high-grade highways; foundation layer compaction for airports, ports and industrial construction sites; dam and filling engineering compaction.
