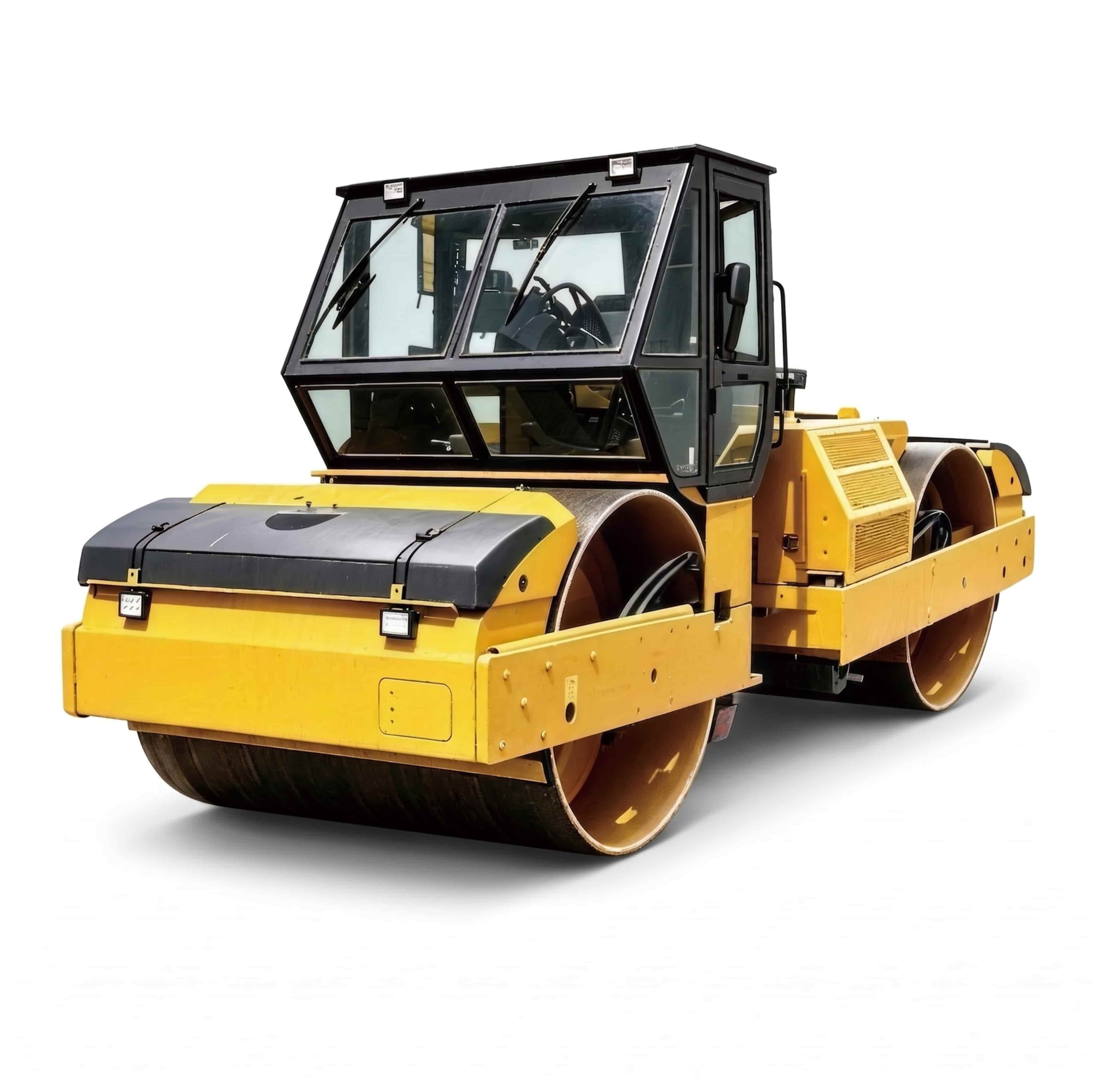

DD130 Double Drum Vibratory Roller

The DD130 is a heavy-duty double drum vibratory roller, mainly used for asphalt surface and base layer compaction in high-grade highway and large-scale pavement projects.

Roller
Double Drum Roller

Technical Specifications

Parameter Unit Specification
Operating Weight kg 13,440
Engine - Cummins B5.9-C / 6BTA5.9
Rated Power kW (hp) 130 (174) @ 2200 rpm
Drum Width mm 2,135
Drum Diameter mm 1,400
Vibration Frequency Hz 41.7 (2500 vpm)
Centrifugal Force kN 160 / 71.5
Amplitude mm 0.89 / 0.41
Static Axle Load (Front/Rear) kg 7,030 / 6,410
Water Tank Capacity L 1,173 (310 gal)
Dimensions (L×W×H) mm Approx. 5765 × 2345 × 2420 (to steering wheel)

Applications

Asphalt surface compaction for high-grade highways and urban main roads; large-area asphalt paving for airport runways, large parking lots, and industrial parks; compaction of modified asphalt, thin asphalt layers, and sensitive areas such as bridge decks.
