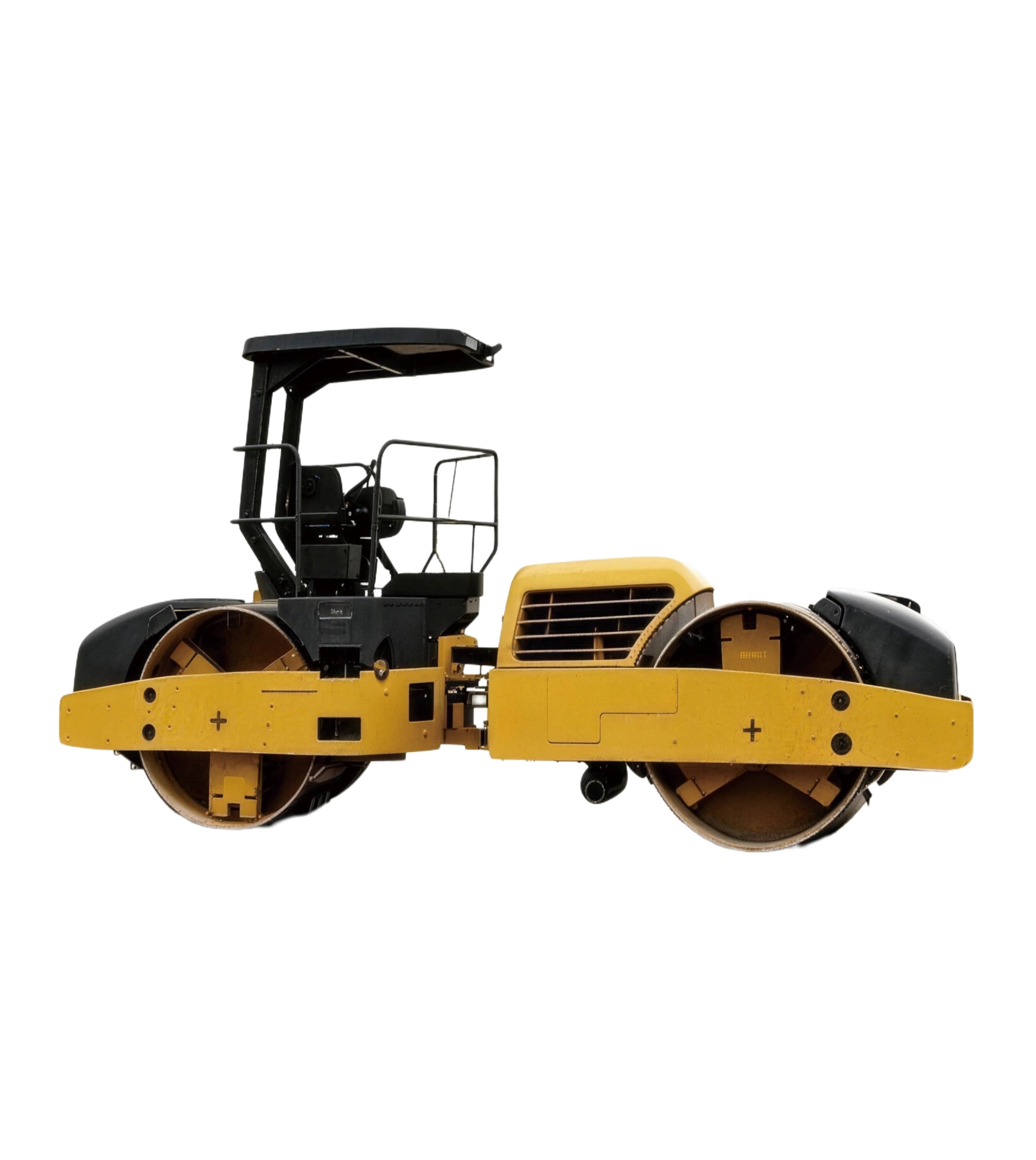

DD118HF Double Drum Vibratory Roller

The DD118HF is a 12-ton class high-frequency double drum vibratory roller, designed for asphalt surface and base layer compaction on high-grade highways.

Roller
Double Drum Roller

Key specifications

Operating Weight
13,440 kg
Rated Power
130 kW
Max Centrifugal Force
160 kN

Technical Specifications

Parameter Unit Specification
Operating Weight (with ROPS) kg 12,548
Engine - Cummins QSB 4.5 / B3.9-C125
Rated Power kW (hp) 110.4 (148) / 93 (125)
Drum Width mm 2,000
Drum Diameter mm 1,400
Vibration Frequency Hz 56 / 67
Centrifugal Force kN 102 – 190
Amplitude mm 0.63 – 0.34
Travel Speed km/h 10.8
Fuel Tank Capacity L 201
Hydraulic System Capacity L 132
Transport Dimensions (L×W×H) mm 5,995 × 2,210 × 3,160

Applications

Asphalt surface compaction for high-grade highways; compaction of sensitive areas such as bridge decks and modified asphalt; large-area paving for parking lots, industrial parks, and municipal roads.
